Two-sample ALE meta-analysis

Meta-analytic projects often involve a number of common steps comparing two or more samples.

In this example, we replicate the ALE-based analyses from Enge et al.1.

A common project workflow with two meta-analytic samples involves the following:

1. Run a within-sample meta-analysis of the first sample.

2. Characterize/summarize the results of the first meta-analysis.

3. Run a within-sample meta-analysis of the second sample.

4. Characterize/summarize the results of the second meta-analysis.

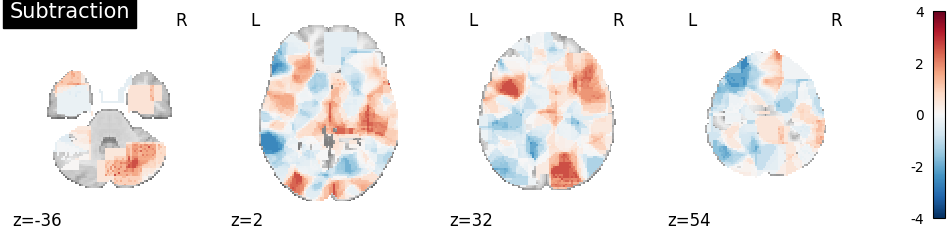

5. Compare the two samples with a subtraction analysis.

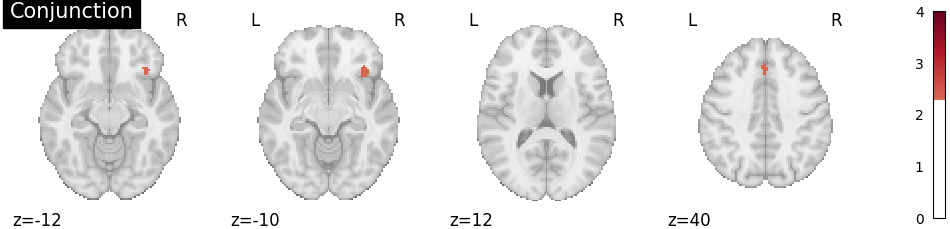

6. Compare the two within-sample meta-analyses with a conjunction analysis.

import os

import matplotlib.pyplot as plt
from nilearn.plotting import plot_stat_map

Load Sleuth text files into Datasets

The data for this example are a subset of studies from a meta-analysis on semantic cognition in children 1. A first group of studies probed children’s semantic world knowledge (e.g., correctly naming an object after hearing its auditory description) while a second group of studies asked children to decide if two (or more) words were semantically related to one another or not.

from nimare.io import convert_sleuth_to_dataset
from nimare.utils import get_resource_path

knowledge_file = os.path.join(get_resource_path(), "semantic_knowledge_children.txt")
related_file = os.path.join(get_resource_path(), "semantic_relatedness_children.txt")

knowledge_dset = convert_sleuth_to_dataset(knowledge_file)
related_dset = convert_sleuth_to_dataset(related_file)

Individual group ALEs

Computing separate ALE analyses for each group is not strictly necessary for performing the subtraction analysis but will help the experimenter to appreciate the similarities and differences between the groups.

from nimare.correct import FWECorrector
from nimare.meta.cbma import ALE

ale = ALE(null_method="approximate")
knowledge_results = ale.fit(knowledge_dset)
related_results = ale.fit(related_dset)

corr = FWECorrector(method="montecarlo", voxel_thresh=0.001, n_iters=100, n_cores=2)
knowledge_corrected_results = corr.transform(knowledge_results)
related_corrected_results = corr.transform(related_results)

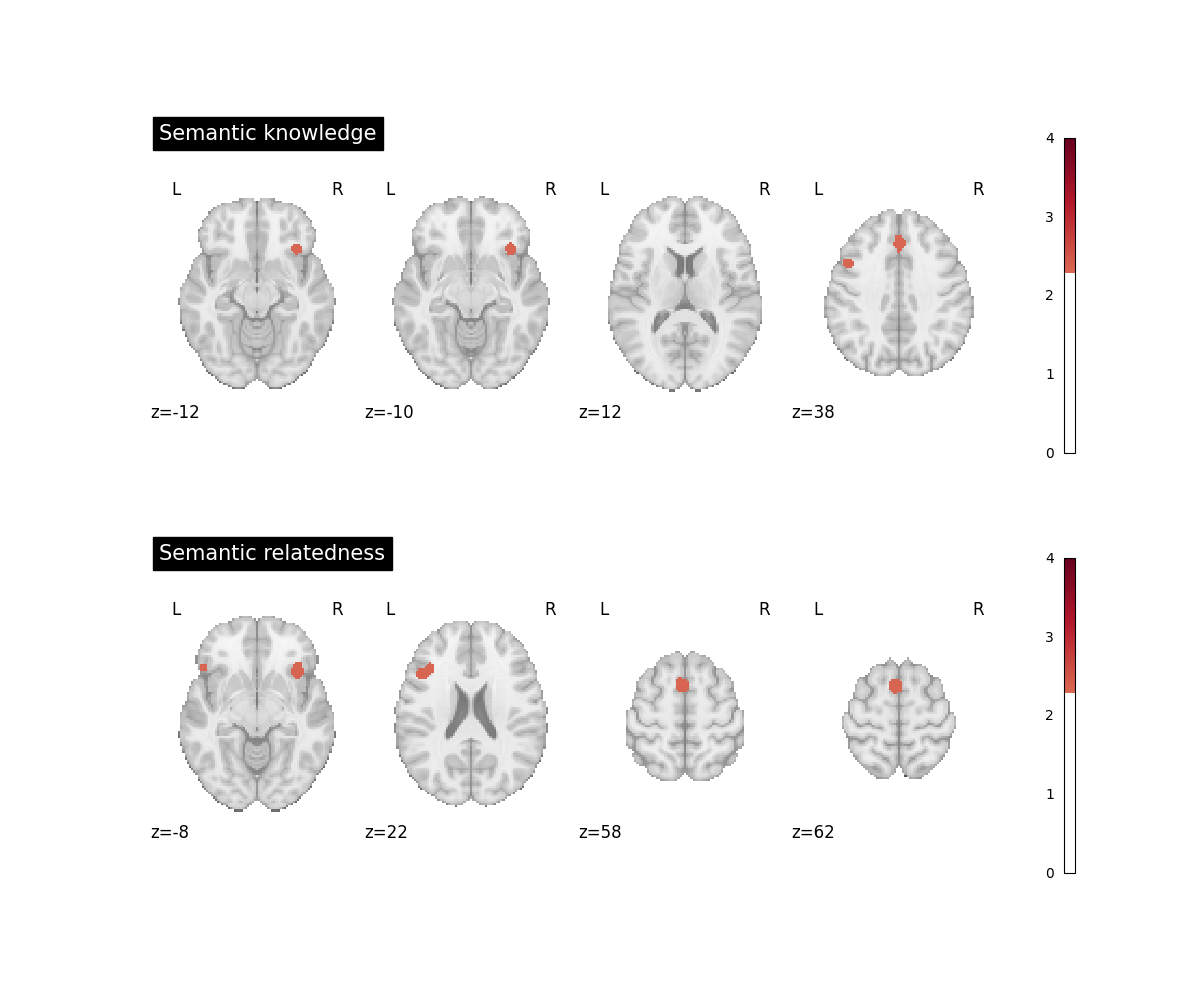

fig, axes = plt.subplots(figsize=(12, 10), nrows=2)
knowledge_img = knowledge_corrected_results.get_map(
    "z_desc-size_level-cluster_corr-FWE_method-montecarlo"
)
plot_stat_map(
    knowledge_img,
    cut_coords=4,
    display_mode="z",
    title="Semantic knowledge",
    threshold=2.326,  # cluster-level p < .01, one-tailed
    cmap="RdBu_r",
    vmax=4,
    axes=axes[0],
    figure=fig,
)

related_img = related_corrected_results.get_map(
    "z_desc-size_level-cluster_corr-FWE_method-montecarlo"
)
plot_stat_map(
    related_img,
    cut_coords=4,
    display_mode="z",
    title="Semantic relatedness",
    threshold=2.326,  # cluster-level p < .01, one-tailed
    cmap="RdBu_r",
    vmax=4,
    axes=axes[1],
    figure=fig,
)
fig.show()
